Working principle and safety importance of Natural Gas Pressure Regulator

I. Importance of pressure regulation
In natural gas systems, natural gas is usually supplied to users or equipment through high-pressure pipelines or tanks. Due to the high pressure of natural gas in pipelines, direct use will cause damage to household, industrial equipment and pipeline systems. It is necessary to use a pressure regulator to reduce the pressure of the gas to a safe and usable range. Excessive pressure can cause damage to gas stoves, water heaters and other equipment or gas leakage, and even cause safety accidents; while too low pressure will cause the equipment to fail to work properly, affecting the supply and use efficiency of gas.

The regulation function of the Natural Gas Pressure Regulator is crucial. It ensures the safety and stability of natural gas in the entire supply chain, so that gas can be supplied to the user terminal at an appropriate pressure.

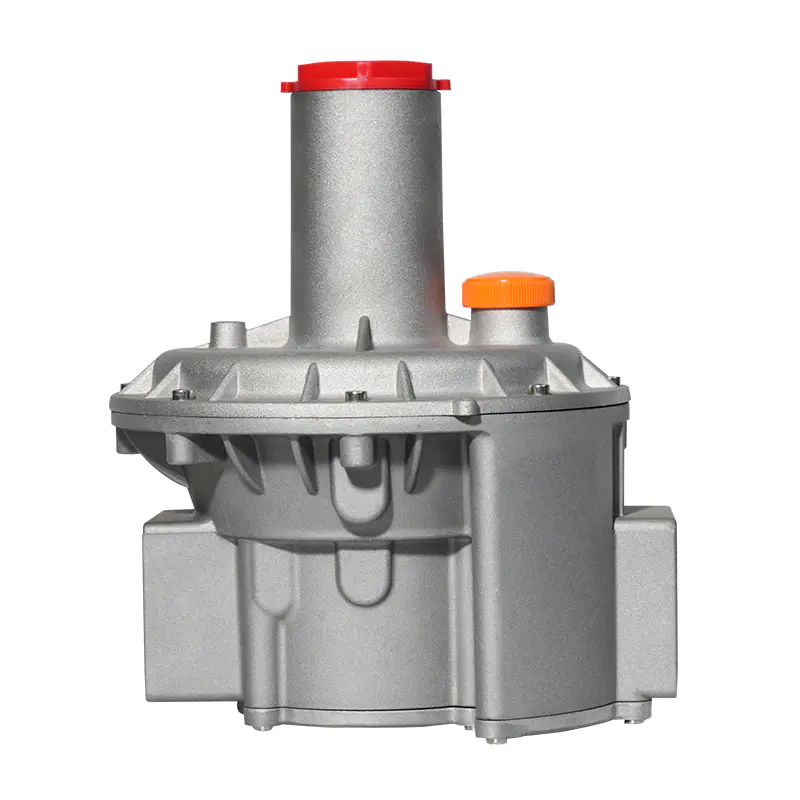

II. Working principle of natural gas pressure regulator
The pressure regulation function of the Natural Gas Pressure Regulator is achieved through a series of mechanical structures and regulation principles. The most critical parts are the diaphragm, spring, valve and other components inside the regulator, which work together to achieve pressure regulation of high-pressure gas.

1. High-pressure gas enters the regulator
The natural gas pressure regulator is usually installed at the entrance of the natural gas supply system, and the gas first enters the regulator through the high-pressure pipeline. During this process, the gas pressure is usually high, far exceeding the pressure that household or industrial equipment can withstand, and the pressure needs to be reduced.

2. The role of the diaphragm and the spring
There is a very important component inside the regulator - the diaphragm. The diaphragm is a thin and soft structure, usually made of metal or other pressure-resistant materials, and connected to the gas pressure through a spring. When the high-pressure gas enters the regulator, it will act directly on the diaphragm, causing the diaphragm to deform.

The deformation of the diaphragm will affect the opening and closing degree of the valve inside the regulator. At this time, the spring plays a balancing role, and the deformation degree of the diaphragm is adjusted by the tension of the spring, thereby controlling the gas flow and pressure. The tension of the spring is usually adjustable, and by adjusting the strength of the spring, the gas pressure output by the regulator can be changed.

3. Valve adjustment
The deformation of the diaphragm not only affects the airflow, but also directly controls the opening and closing of the valve inside the regulator. When the diaphragm moves downward due to increased pressure, the valve will close or reduce the opening, thereby reducing the gas flow and pressure; when the gas pressure is low, the diaphragm will be pushed back to its original position by the reaction force of the spring, and the valve will open or increase the opening to allow more gas to pass through.

In this way, the regulator can accurately control the flow of gas and adjust the gas pressure according to actual needs to ensure the stability and safety of the output gas.

4. Constant pressure output
The natural gas pressure regulator ensures that the regulated natural gas is output at a constant low pressure through the coordinated action of the diaphragm, spring and valve. Regardless of how the input pressure changes, the regulator will automatically adjust according to the set pressure range to maintain the stability of the gas pressure. In high demand conditions (such as when the gas flow increases), the regulator will automatically increase the gas flow, and reduce the gas flow when the demand decreases, thereby maintaining a constant pressure.

This constant output pressure is the key to the efficient and safe operation of household equipment, commercial stoves, industrial combustion systems, etc. With a stable gas pressure, problems such as equipment failure, unstable flames, and gas leaks caused by pressure fluctuations can be avoided.

3. Pressure setting and adjustment of pressure regulator
The working efficiency and stability of natural gas pressure regulators depend on the correct pressure setting. The pressure setting determines the output pressure range of the regulator. Generally speaking, natural gas pressure regulators have two main set pressures:

Input pressure: This is the high pressure from the gas source, usually provided by a gas pipeline or gas cylinder. This pressure can be as high as hundreds or thousands of Pa (Pa).

Output pressure: This is the low pressure output by the regulator to the equipment, which is usually more stable and generally ranges from 20-200mbar. Depending on the use requirements, the natural gas pressure regulator will automatically reduce the high-pressure gas to a pressure suitable for home or industrial equipment.

In order to ensure that the regulator can work properly in different environments, the regulator is usually equipped with an adjustable spring tension. This adjustment function allows the user to adjust the output pressure according to actual use requirements. Natural gas pressure regulators for home use need to set a lower output pressure, while some industrial equipment may require a higher pressure output.

4. Safety and monitoring during pressure regulation
In the use of natural gas pressure regulators, in addition to the pressure regulation function, safety is also very important. Many modern pressure regulators are equipped with multiple safety devices, such as:

Overpressure protection: When the gas pressure is too high, the regulator will release excess gas through the built-in safety valve to prevent equipment damage or danger.

Low pressure alarm: Some regulators are equipped with a low pressure alarm device. When the gas pressure is lower than the set value, an alarm will sound to prompt the user to check whether there is a problem with the system.

These safety protection measures further ensure that natural gas will not cause safety accidents during the regulation process, protecting the lives and property of users.
