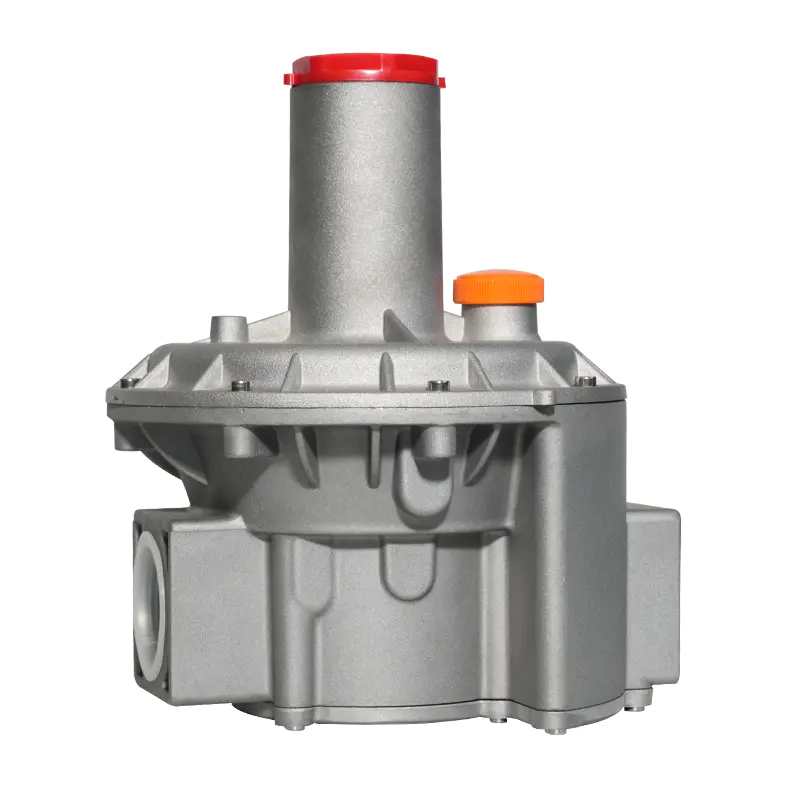

Pipeline Gas Pressure Regulators: Structural Design Innovation and Performance Improvement

1. Modular design: improving flexibility and maintainability
Modular design is an important trend in modern product design, especially in the field of Pipeline Gas Pressure Regulators, which significantly improves the flexibility and maintainability of the product. Modular design means splitting the pressure regulator into multiple independent but interrelated functional modules, such as inlet module, filter module, pressure regulation module, safety cut-off module and outlet module. This design allows users to select and combine different modules according to actual needs, thereby achieving customized configuration of the voltage regulator.

Another advantage of modular design is that it simplifies repair and replacement. When a module fails, the user does not need to replace the entire voltage regulator, but only needs to replace the faulty module, which greatly reduces maintenance costs and time. The modular design also facilitates product upgrades and expansions. As technology advances, users can easily replace old modules to upgrade the performance of the regulator.

2. High precision and stability: Optimizing internal structure
In the structural design of Pipeline Gas Pressure Regulators, high accuracy and stability are crucial. To achieve this goal, suppliers are constantly innovating in their internal structures. The accuracy and stability of the voltage regulator are improved by using advanced materials and technologies, such as precision-machined metal components, high-performance seals and precision sensors.

Suppliers also reduce fluid resistance and improve the flow and efficiency of the pressure regulator by optimizing the internal flow channel design. Optimizing the flow path design not only helps improve the performance of the regulator, but also extends its service life, because reducing fluid resistance means less wear and corrosion of components.

3. Improvement of safety performance: multiple safety protection mechanisms
Safety is one of the core elements in the design of pipeline gas pressure regulators. In order to improve the safety performance of their products, suppliers have incorporated multiple safety protection mechanisms into their structural designs. The built-in safety cut-off device can quickly cut off the gas supply when overpressure, underpressure or other abnormal conditions are detected to prevent accidents.

Some advanced pressure regulators are also equipped with multiple safety protection mechanisms such as overpressure protection valves, overcurrent protection valves and explosion-proof devices. These mechanisms work together to ensure that the voltage regulator can maintain safe and stable operation under various extreme conditions.

4. Internal balance structure design: improve the ability to resist fluctuations
The internal balance structure design is another important innovation in pipeline gas pressure regulators. This design improves the regulator's ability to resist fluctuations by counteracting the effect of changes in inlet pressure on the regulator's outlet pressure through internal components such as a balanced diaphragm or piston.

The internal balance structure design enables the pressure regulator to maintain stable outlet pressure when the inlet pressure fluctuates greatly. This is crucial to ensuring the stability and safety of gas supply, especially in some application scenarios with higher requirements for gas pressure, such as industrial production and residential gas use.

5. Environmental adaptability design: adapting to diverse application scenarios
With the diversification of application scenarios of pipeline gas pressure regulators, suppliers have begun to pay attention to the environmental adaptability design of their products. This includes considering the impact of environmental factors such as temperature, humidity, corrosiveness, etc. under different climatic conditions on regulator performance, and taking appropriate design measures to meet these challenges.

In cold regions, suppliers may use anti-freeze designs to ensure that the voltage regulator can still work normally in low temperature environments. In more corrosive environments, suppliers may choose corrosion-resistant materials or use special coating technologies to protect key components of the regulator.

6. Intelligence and remote monitoring: improving management efficiency
With the continuous development of Internet of Things technology, intelligence and remote monitoring have become a new trend in the design of pipeline gas pressure regulators. By integrating sensors, data acquisition modules and remote communication modules into the voltage regulator, suppliers have achieved real-time monitoring and remote control of the voltage regulator's operating status.

This intelligent design not only improves the management efficiency of the voltage regulator, but also reduces the cost and risk of manual inspections. Users can view the pressure, flow, temperature and other key parameters of the voltage regulator in real time through mobile phone APP or cloud platform, and take timely measures to deal with it when abnormalities are found.
